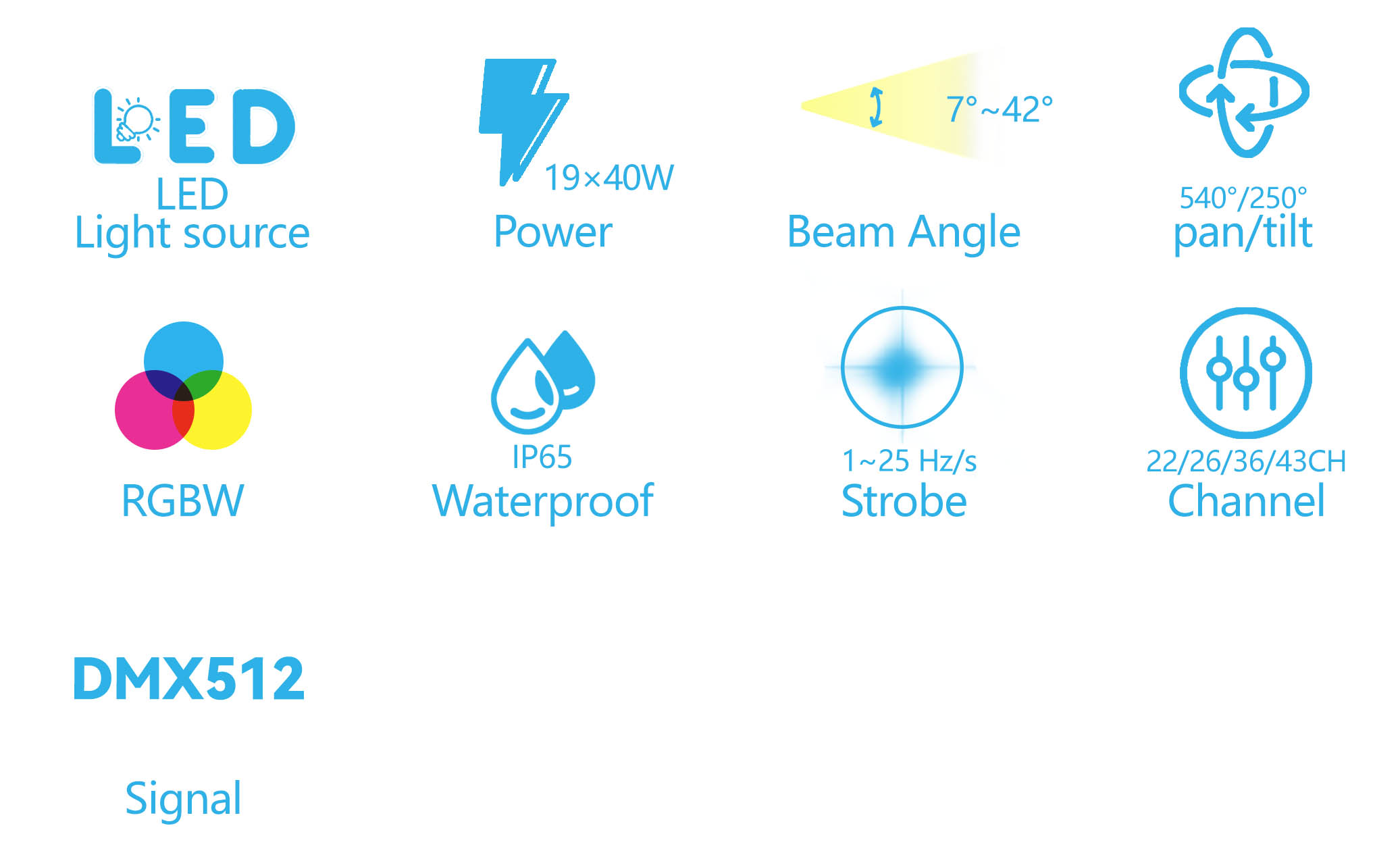

Voltage: AC100V～240V 50-60HZ

Rated Power: 800W

LED Source: 19x40W high power RGBW 4in 1 LEDs

Zoom: 1:6 zoom range from 7 to 42 degree

Strobe: 0-25Hz

Control Mode: DMX512,Sound-actived,Master/slave

DMX Channels: 22/26/36/43/78/119 six channel mode

Dimmer: 0-100% linear dimmer with 4 kinds of dimmer curve.

Pan: 540°+16 bit fine

Tilt: 250°+16 bit fine

Display: LCD display with touch buttons.

IP Rate: IP65

Fixture dimension: 434*260*577mm

N.W: 22KG

G.W: 26KG(1pc/ctn)

G.W: 75KG(2pcs/case)

Package dimension: 61*53*45 cm(1pc/ctn)

Flight case size: 87*46*80 cm(2pcs/case)Special Points.

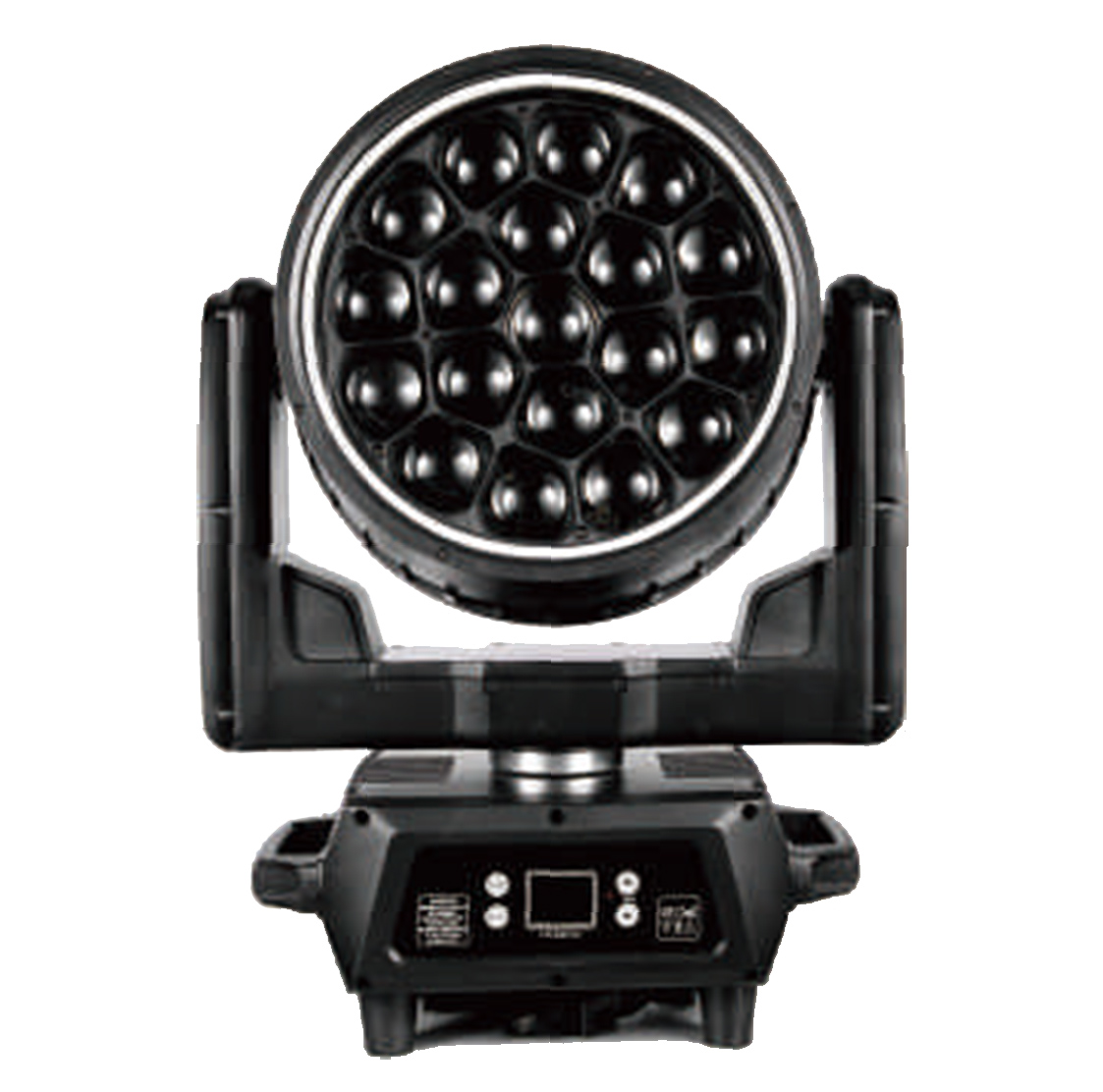

1. Each LED can be controlled individually. With unique honeycombdesigned lens

2. The front lens can rotate without limitation in forward and reversedirection to create amazing effects

3. Can be used as beam, wash or effect light use (Kaleido effects)

4.With a extra LED ring for eye-candy effect, LED ring with macro effect

5. Pure aluminum casting waterproof housing, suitable for all kinds ofenvironment

•
