Voltage: AC110-240V,50/60Hz
Power Consumption: 380W
Light source: 300W
Bulb life: 1500H
Color temperature: 7500K
Beam Angle: 2°
Optical system: colorful coating lens
Signal control: DMX512, master/slave
Channel: 16ch
Pan movement: 540°(16bit), 3 phase motor, auto repositioning
Tilt movement: 250°(16bit), 3 phase motor, auto repositioning
1 color wheel: 14+white, half-step color effect
1 GOBO wheel: 13 fixed gobo+white, bidirectional variable speed rotation
1 rainbow plate, rainbow speed adjustable
Prism: 8+16 facet prism, unique rainbow prism effect
Dimming: 0-100% linear
Zoom: electric zoom, quick linear
Strobe: 0.5-9 Hz
Frost: 0-100% linear
IP rated: IP20
Product size: 355×240×535mm
N.W.: 14.3kg

•

  Product Specs

•

  Product Manual

•

  DMX Channels

•

  Photometrics

•

  CAD Symbols

•

  Accessories (Packaging and battery removal)

•

  Gobos And Filters

•

  Library Download

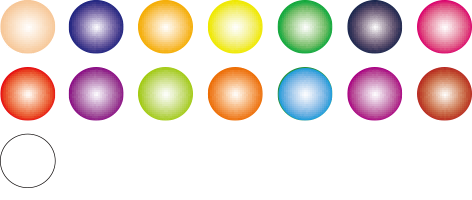

COLOR WHEEL

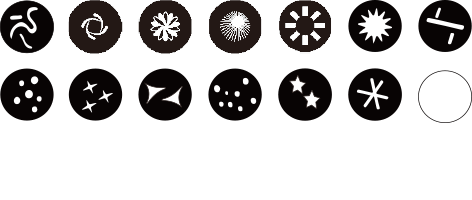

GOBO WHEEL
